IGU specs that move the U-value needle
Not all thermal specs are created equal. Here's where the real gains hide in an insulated glass unit.
This page is about reading and writing an insulated glass unit specification: which lines in the build actually move the whole-window U-value, which ones only move the number on the glass cut sheet, and what to confirm before units are fabricated for a Colorado project.
The first distinction does most of the work. Center-of-glass U-value describes a point in the middle of the lite, away from the edge and the frame. Whole-window U-factor — the number an energy model and a code path generally use — includes edge-of-glass conduction through the spacer and conduction through the frame. A very good center-of-glass number in a conductive frame with an aluminium spacer can end up an unremarkable whole-window number.
The second is that an IGU is a sealed assembly with a service life, not a permanent condition. Every spec decision below is simultaneously a durability decision, because the day the seal fails the thermal performance argument ends and the unit is replaced.
Spec lines in an insulated unit and what each one actually controls
| Spec line | What it primarily affects | What to state in the specification |
|---|---|---|
| Low-E coating and surface number | Solar heat gain, radiative heat loss, appearance | Coating product and the numbered surface it occupies, per unit type |
| Cavity width | Conductive and convective heat transfer across the gap | Nominal cavity dimension for each build, and overall unit thickness |
| Gas fill | Conductivity of the cavity | Fill type and the fabricator's stated fill percentage at manufacture |
| Spacer type | Edge-of-glass conduction, condensation resistance at the perimeter | Warm-edge or conventional, named by product, not implied |
| Sealant system | Gas retention and moisture ingress over time — the unit's service life | Primary and secondary seal type and compatibility with the coating and glazing sealant |
| Lite make-up and heat treatment | Safety glazing, strength, acoustics, weight, appearance | Thickness, annealed or heat-treated, laminated interlayer where required |
| Frame and installation | Whole-window U-factor, air leakage, condensation at the perimeter | Frame system, thermal break, and the perimeter air and water seal detail |

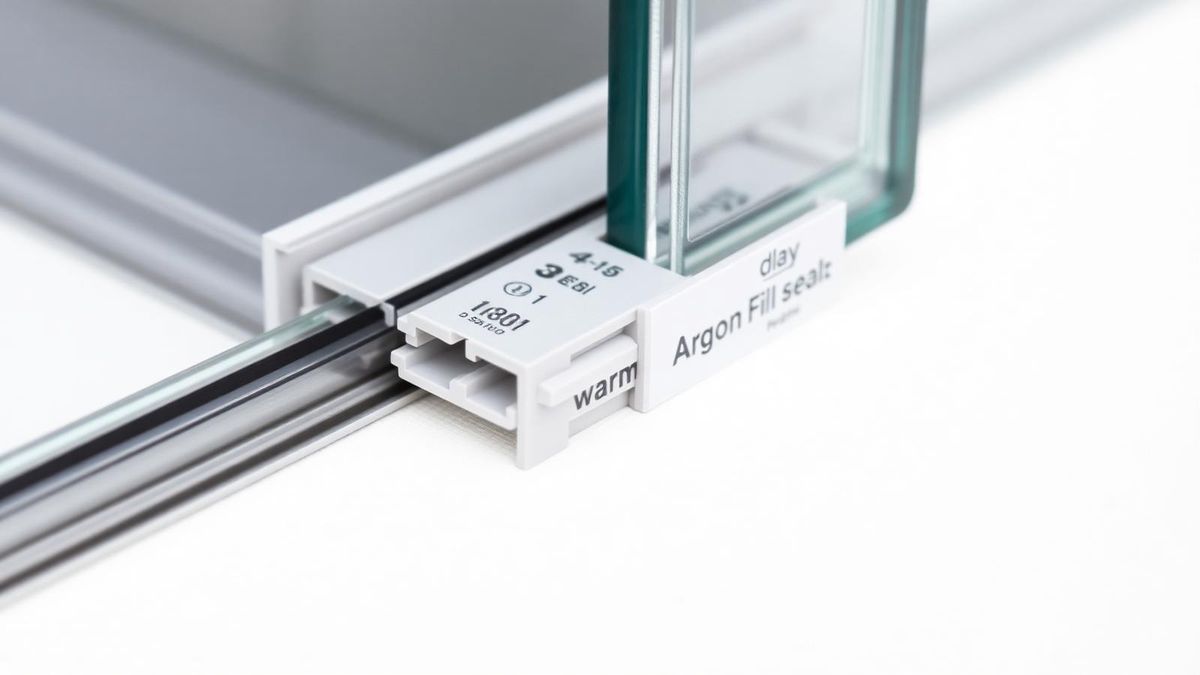

The edge is where the easy improvement lives
Conventional aluminium box spacers conduct well — which is exactly the problem, because they conduct heat straight around the cavity you paid to insulate. Warm-edge spacers substitute stainless steel, structural foam or polymer hybrids to reduce that path.
The benefit shows up in two places. One is the whole-window U-factor, where the improvement is real but modest in isolation. The other is perimeter surface temperature, which is what governs condensation at the glass edge on a cold morning — the failure most owners actually notice and complain about.
Because the edge effect scales with perimeter length relative to area, small lites and heavily divided openings gain more from a warm-edge spacer than a single large expanse does. That is worth remembering when a divided-lite window package is being value-engineered.
Gas fill, altitude, and Colorado fabrication
Inert gas fills reduce conductivity across the cavity relative to air. Two things determine whether that benefit is real on your project: the fill percentage achieved at manufacture, and how much of it is still there years later. Both are properties of the fabricator's process and seal system, so ask for the fabricator's stated fill percentage rather than assuming a figure.
Retention is a sealant question. Dual-seal construction — a primary seal that resists gas and moisture transmission and a secondary seal that carries the structural load of the unit — is the conventional answer, and sealant compatibility with the glazing system and with any coating at the edge has to be confirmed by the fabricator.
Altitude is the Front Range specific. A unit sealed near sea level and installed a mile higher has a pressure differential across it, which deflects the lites and stresses the seal. Fabricators address this with capillary or breather tubes, with adjusted fill, or by building the unit at elevation. Which approach applies to your units, and what it does to the gas fill, is a question to settle with the fabricator before the order rather than after the glass arrives visibly bowed.
Large diurnal temperature swings work the same seal in the opposite direction every day. That is one reason the durability lines of a specification deserve as much attention as the performance lines in this climate.
When triple glazing is a systems decision
Triple glazing adds a lite and a second cavity, and with them a second coated surface and a meaningful weight increase. The thermal argument is straightforward; the consequences are not confined to the glass.
Weight reshapes the framing, the hardware and, on operable units, the hinge or roller selection and the force required to operate them. Unit thickness has to fit the frame's glazing pocket, which usually means a different frame series rather than the same frame with thicker glass.
The practical order is: confirm the frame system can take the unit, confirm the operating hardware suits the weight, confirm the structural support and the installation detail, and only then optimise the glass build. Choosing the glass first and discovering the frame later is how a thermal upgrade turns into a redesign.
Where a project is heating-dominated and glazing area is large, the case is strongest. Where the target can be met with a better double-glazed build, a warm-edge spacer and a tighter perimeter seal, that is usually the lower-risk path.
Before the units are ordered
Whole-window U-factor and SHGC requested for the actual assembly, with NFRC-certified data retained in the submittal record.
Coated surface number confirmed per unit type and marked by the fabricator for field orientation.
Spacer product named, and the reason for the choice recorded where condensation performance matters.
Fabricator's stated gas fill at manufacture and seal system documented.
Altitude handling confirmed for units fabricated outside the Front Range.
Safety-glazing locations identified against the project documents, since hazardous locations are determined by the adopted code and the Authority Having Jurisdiction.
Field dimensions taken after the rough openings are final, because a sealed unit cannot be trimmed.
Specifying replacement units in an existing building
Retrofit work adds constraints a new-build specification does not have. The existing frame fixes the maximum unit thickness, the glazing pocket depth fixes the bite, and the existing sightlines fix what the new unit can look like next to its unreplaced neighbours.
That is why a like-for-like replacement of a failed unit and a thermal upgrade are two different conversations. Improving the build inside the same pocket is often possible; changing to a much thicker unit usually is not without changing the frame.
Appearance continuity matters on any elevation where only some units are being replaced. A different coating family in the same façade can read as a different colour in reflection, which is a reason to record the original build and to review a sample before ordering.
Where the seal has already failed, the question of repairing versus replacing the unit — and whether the surrounding window is worth keeping — is covered in the failed insulated glass guide.
Frequently asked questions
- Is center-of-glass U-value the same as the window's U-factor?
- No. Center-of-glass excludes the spacer and frame. Whole-window U-factor includes both and is normally the number used for code and energy modelling, so compare products on the same basis.
- Can a fogged insulated unit be repaired instead of replaced?
- Drilling and drying a failed unit does not restore the seal, the gas fill or the original thermal performance, and it introduces a permanent penetration. Replacement of the sealed unit is the normal remedy.
- Does a warm-edge spacer stop condensation?
- It raises the glass edge temperature, which reduces the conditions under which perimeter condensation forms. Interior humidity, air movement and window coverings also drive condensation, so no glass specification eliminates it on its own.
- Do insulated units have to be fabricated in Colorado?
- Not necessarily, but units fabricated at much lower elevation need a documented approach to the pressure differential. Ask the fabricator how they handle it and what it does to the gas fill.
- How long does a sealed unit last?
- Service life depends on the seal system, edge protection, glazing detail and exposure, and manufacturers publish their own warranty terms for their products. Treat any published figure as the manufacturer's, not a promise from the installer.
