Specifying minimum-sightline systems

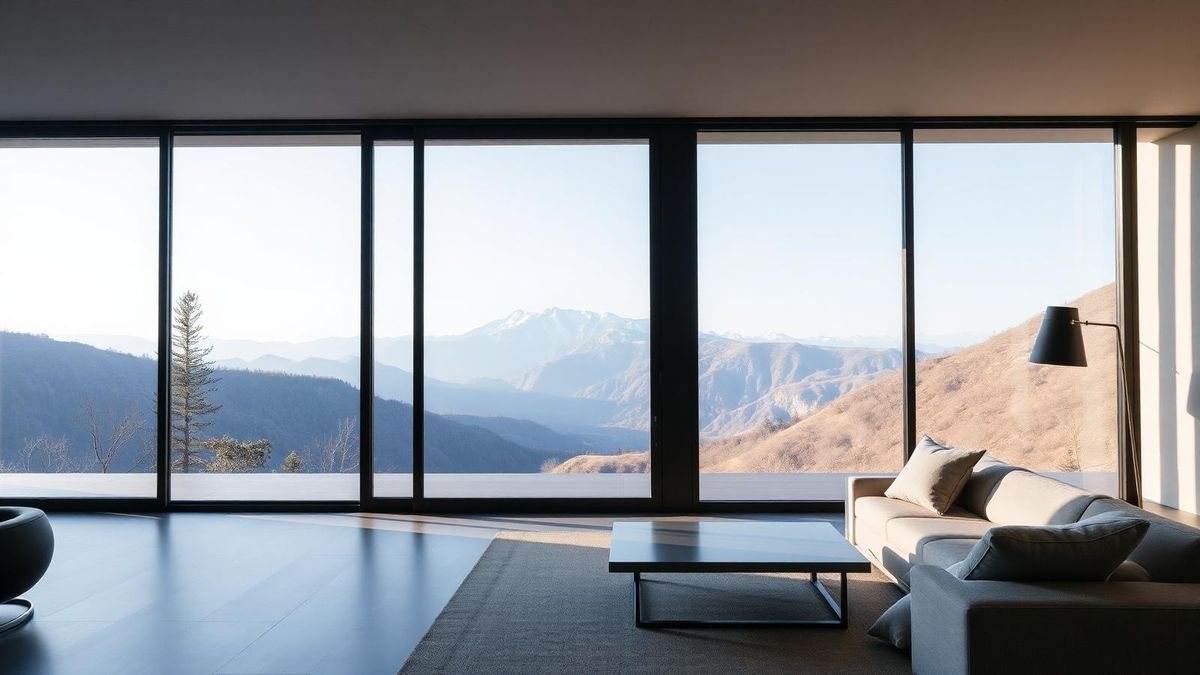

Ask first whether the view or the opening actually justifies it. The systems earn their place where a wall of glass is the architecture — a mountain view, a courtyard opening, a room designed to become an outdoor space. Where glazing is one element among many, the same budget usually buys more elsewhere.

Ask second whether the structure can be designed around it now. Deflection at the head, movement between floors, and how the opening behaves under load are decisions made with the structural engineer at design stage. A system whose published deflection tolerance cannot be met is not a system that can be installed well.

Ask third who will hold the tolerances. Concrete, framing, waterproofing, tile and stone all have to work to the glazing setting-out. On a project where the trades are not coordinated to that level, the frames will still be thin and the junctions will still show every millimetre of deviation.

Ask fourth what the procurement risk is. Specialist systems constrain substitution, and lead time is a function of the specific supplier, product and current conditions — confirm it in writing with the supplier at the point of specification and reflect the actual quoted figure in the programme rather than an assumed one.

Head deflection is the governing structural conversation. A large sliding or pivot panel that runs in a concealed head track needs that track to stay within the manufacturer's published tolerance under live and dead load, including any long-term deflection. The steel or engineered header is sized for that limit, which is typically tighter than the general code deflection limit for the same span.

The floor pocket is the governing construction conversation. A recessed bottom track has to be positioned, levelled and formed as part of the slab or floor build-up, to the flatness and level tolerance the system publishes. Correcting a pocket after the pour is expensive and sometimes not possible within the finished floor thickness.

Setting-out has to be a single coordinated datum shared by structure, waterproofing, glazing and finishes. Where each trade works from its own reference, the accumulated error lands at the one junction that has no cover trim.

Access and handling belong in the same conversation. Large panels are heavy and awkward, and the route into the opening — hillside site, tight urban frontage, an interior route through finished space, or a lift requirement — affects both cost and how late in the programme the glass can practically be set.

Thermal performance shifts in a specific way when frame area shrinks. Less frame means the glass build carries proportionally more of the assembly's performance, and the frame that remains is often slender metal, so the thermal-break detail and the glass specification matter more than they would on a conventional opening. What the insulated unit needs to achieve is set out in the insulated unit guide.

Solar exposure is a real design load at altitude. A large west-facing glass wall with no shading gets the full afternoon sun in summer, and coating selection alone rarely solves comfort at the glass line — overhangs, deep reveals and shading strategy should be resolved with the glazing, not after it.

Snow and water management deserve early attention with flush sills. A near-flush threshold removes the traditional upstand, so drainage capacity, membrane termination, and what happens when snow drifts against the sill and then melts have to be designed rather than assumed. Where a project sits above a habitable space, that detail is worth reviewing with the waterproofing consultant.

Temperature swings and dry air work sealants and gaskets hard, and large moving panels concentrate wear at the same hardware every day. Ask the supplier what maintenance the hardware and seals require and who performs it, and record that in the owner's closeout documents.

Guard requirements interact with the design where a large operable panel opens onto a level change. Whether a guard is required, and what it must resist, is determined by the adopted code and the Authority Having Jurisdiction for the project — but if a guard is coming, its interaction with the sightline is a design decision, not an afterthought bolted to the sill.

Use this at design development, when the answers can still change the drawings cheaply.

Not every project that wants the look needs the full commitment. A fixed picture window with a minimal perimeter, a smaller operable panel beside a large fixed lite, or a conventional system with a carefully detailed reveal will deliver much of the visual effect with far less coordination risk.

Interior applications are the easier win. Inside the building envelope there is no water, no snow and no thermal boundary to resolve, so slim interior partition and door systems achieve a similar visual language with a fraction of the exterior coordination — the interior glazing scope covers that ground.

The honest test is whether the project team is prepared to hold the tolerances. Where it is, the result is the architecture. Where it is not, a conventional system detailed well looks considerably better than a minimum-sightline system installed badly.
