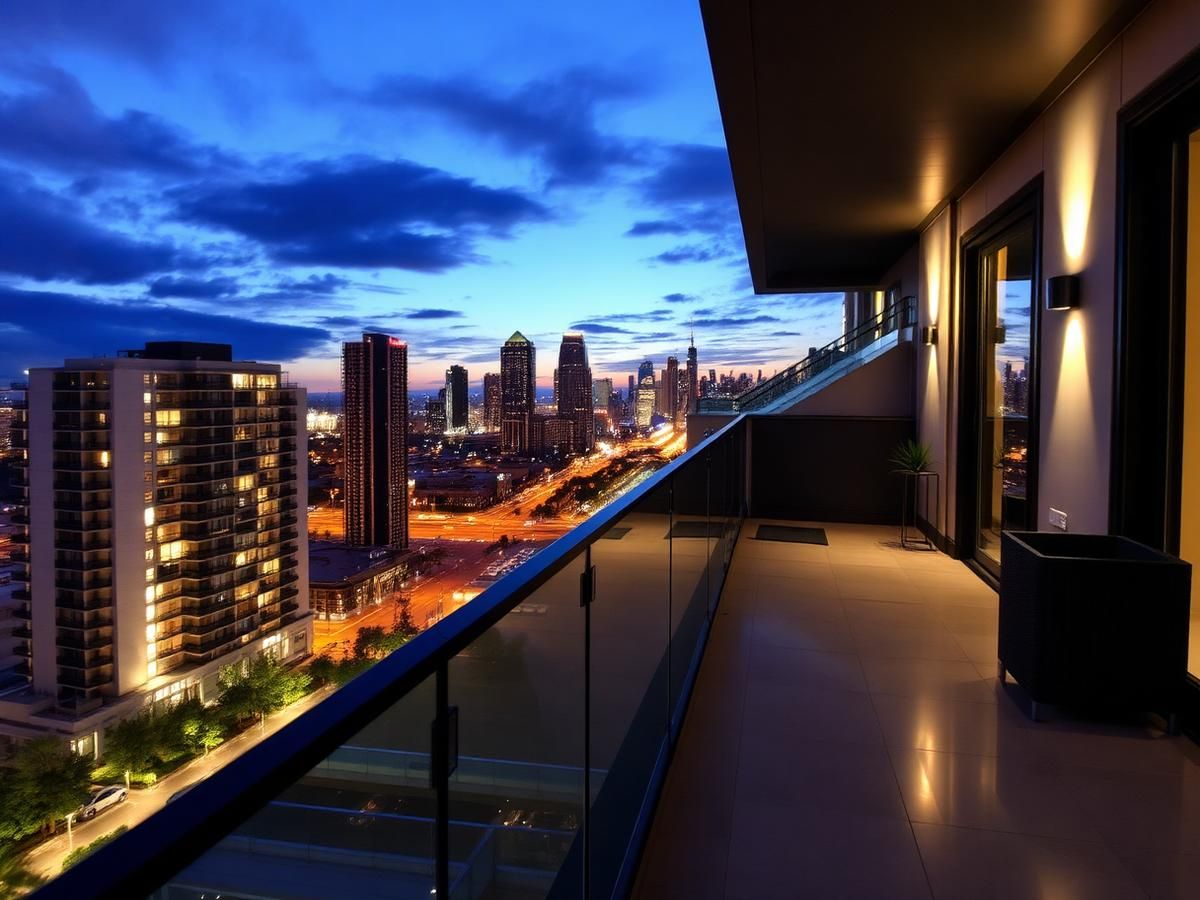

Glass Railing Systems Compared: Base Shoe, Standoff, Post-and-Panel, and Channel

A base shoe is a continuous metal channel anchored to the slab or structure, into which the glass is set and locked — either with a dry-glaze cassette and gaskets or with a wet-set grout. The glass acts as the guard, and the shoe delivers the moment into the structure over a continuous line. This is the system behind most of the frameless glass guards people picture.

Standoff hardware — round or square fittings, usually stainless — mounts the glass to a face: a slab edge, a fascia, a stringer, or a wall. Loads arrive at a handful of discrete points rather than along a line, which is efficient but concentrates everything the guard experiences into a few anchors and a few holes in the glass.

Post-and-panel captures glass between metal posts at intervals. The posts carry the load; the glass is infill. It is the least demanding system structurally and the most tolerant of framing that is not perfectly plumb or level.

A channel or top-and-bottom capture system holds the glass in metal along two edges. It gives some of the continuity of a base shoe with less depth, and it appears frequently on interior guards, mezzanines, and Juliet-style balconies.

Every glass guard turns a horizontal push at the top into a large overturning force at the bottom. That force has to land in something that can take it, and the system you choose determines where and how it lands. This is why substrate — not aesthetics, not budget — is the first question a glazier asks.

A base shoe needs a continuous, structurally adequate edge to anchor into, with enough depth and enough distance from the edge for the specified anchors. Concrete slabs are the natural fit; wood-framed decks and thin toppings often need blocking, a steel member, or a different system entirely. The shoe also needs to be set in a straight, level line, because a continuous channel makes any deviation in the substrate visible along its whole length.

Standoffs need the opposite: not a continuous line, but a small number of very sound points. A fascia-mount standoff into a wood rim is a completely different detail from the same fitting into a concrete slab edge, and doubling, through-bolting, or backing steel is common. Because the loads are concentrated, an inadequate anchor point is not a minor issue.

Post-and-panel spreads the same load over more, smaller connections and is consequently the easiest to accommodate on retrofits and light framing. Channel systems fall in between and depend heavily on what the head of the channel is fixed to.

The reason clients ask for glass guards is the view, and the systems rank predictably: base shoe is the cleanest, channel next, standoffs read as glass with visible metal buttons, and post-and-panel divides the run visually at every post. If an uninterrupted horizontal band of glass is the design intent, base shoe is the system that delivers it and everything else is a compromise on that specific goal.

Appearance over time is a different ranking. A base shoe is a continuous trough at the base of the guard, so it collects water, grit, and in Colorado the residue from snowmelt chemicals; it needs drainage detailing and periodic cleaning to stay looking right. Standoffs shed everything and have the least to collect, but exposed fittings show corrosion and staining more obviously if the wrong grade of stainless is used in an exposed or mountain environment.

Joints between panels are the other visible wear item on frameless systems. Whether the panels butt with a sealant joint or sit with an open reveal changes both the look and the maintenance, and the joint detail should be a deliberate choice rather than whatever falls out of the panel layout.

Frameless systems are unforgiving of construction tolerance. Glass panels are fabricated to a size and cannot be trimmed, so the panel layout has to reconcile with a structure that is never perfectly straight. Base shoe absorbs the least: a bowed slab edge shows up as a wandering line. Standoffs absorb a little more, because each fitting can be adjusted independently within its hole clearance. Post-and-panel absorbs the most, because each bay is independent and the posts hide the discrepancy.

Sequencing matters as much as tolerance. Anchors, embeds, and blocking for a base shoe are decided before the slab is poured or the deck is framed. Standoff locations have to be coordinated with framing members, because a fitting that lands between joists needs blocking added while the structure is still open. Glass is measured after the substrate is complete and fabricated to that measurement, so any change afterwards means new glass, not an adjustment.

Serviceability is the criterion owners rarely ask about and later care about most. A damaged panel in a post-and-panel run is usually the easiest to replace. A standoff panel means removing fittings and handling a drilled lite. A wet-set base shoe panel is the hardest, because the glass is grouted into the channel; dry-glaze base shoe systems exist largely to solve that problem.

Exterior guards on the Front Range and in the mountains face wind, UV, freeze-thaw cycling, and deicing chemicals, and every one of those affects the guard's hardware more than its glass. Stainless grade, fastener compatibility, and the isolation of dissimilar metals are specification details that decide whether a guard still looks new in ten years.

Snow and ice are the conditions most often overlooked. Snow sliding from a roof above a deck, ice building on a guard, and drifted snow bearing against a panel are all loads, and they are not the same as the wind case. Where a guard sits below a shedding roof, that condition needs to be raised with the design team early — it can influence the system choice, the panel size, and whether the guard is the right solution at that location at all.

Water management is the third. A base shoe placed on a deck that drains toward it will hold water; the assembly needs weeps and a slope that moves water away, integrated with the deck's waterproofing rather than added over the top of it.

Start with the structure. If the substrate is a sound concrete edge detailed for the guard, and an unbroken sightline is the priority, base shoe is the system to price first. If the guard is going onto an existing deck, a fascia, or a stair stringer, and the anchor points can be made sound, standoffs are usually the practical answer. If the framing is irregular, the budget is tight, or the run is long and the view is not the point, post-and-panel is the honest choice. For interior guards, mezzanines, and short exterior runs where depth is limited, a channel system often fits best.

Then check the exclusions in the other direction: an exposed windward elevation, a location below a shedding roof, a substrate that cannot be verified, a run that has to be serviceable panel-by-panel, or a project where the guard has to be installed after the waterproofing is finished. Any of those can override the first answer.

Finally, resolve the engineering and the approvals before ordering glass. Whatever system you choose, the guard is an engineered assembly whose glass make-up, panel size, hardware, and anchors have to be consistent with one another and acceptable to the AHJ. Mixing hardware between manufacturers within a run, or substituting a component after the assembly has been engineered, invalidates the basis of the design.

Once the system is chosen, the glass specification follows from it. Guard glass is a safety-glazing application, and in practice that means tempered or laminated construction, frequently laminated with a stiff interlayer where the glass is doing structural work or where the design team wants the panel to remain in the opening after breakage. The interlayer type, the thickness of each ply, and whether the panel is heat-soaked are engineering decisions made with the manufacturer against the loads for the specific project, not defaults a contractor should promise sight unseen.

Base shoe and channel systems generally take thicker, heavier panels because the glass spans from a single fixed edge. Standoff systems concentrate load into holes, so hole placement, edge distance, and hardware selection are specified together with the glass; holes and cutouts are fabricated before tempering and cannot be added later. Post-and-panel usually allows the thinnest infill because the posts, not the glass, resist the load.

Finish choices matter as much as thickness. Exposed edges on frameless systems are polished; polished edges on tempered glass reveal fabrication quality, so the edge specification belongs in the submittal. Low-iron glass reduces the green cast that reads most strongly on thick panels and pale interiors, and it is a common upgrade on high-visibility guards where the glass sits against white walls or light stone.

None of these systems is quick, and the sequence is usually what surprises owners rather than the price. Glass for guards is made to order: field-verified dimensions go to the fabricator, panels are cut, fabricated, tempered or laminated, and shipped. Nothing can be trimmed on site, so a dimension error means re-fabrication and a new lead time rather than an afternoon of adjustment.

Base shoe carries the highest coordination cost because the shoe, the anchors, the substrate, and often the waterproofing all have to be right before any glass arrives, and because a continuous line makes any structural deviation visible. Standoff systems have lower material cost but higher precision cost: the hole pattern in the glass must match the anchor pattern in the structure exactly. Post-and-panel is the most forgiving on both counts, which is why it dominates budget-driven and retrofit work. Channel systems typically fall between.

Serviceability differs too, and it deserves a line in the decision. A damaged panel in a post-and-panel run comes out easily. A base-shoe panel usually means opening the cassette or breaking out wet-set grout. Standoff panels require the replacement to reproduce the original hole pattern exactly, which means the fabrication drawings need to survive in the owner's closeout documents.

The most frequent one is choosing the system from a photograph. A frameless guard on a magazine terrace sits on a concrete slab detailed for it; the same look on a wood-framed deck with a thin topping is a different scope with structural work attached. Deciding the look first and the substrate later is how projects lose weeks in redesign.

The second is treating the guard as a finish trade that arrives at the end. Anchors, blocking, embeds, and waterproofing all happen long before the glass shows up. When the glazing contractor is brought in after the deck is poured and flashed, the options narrow to whatever can be surface-mounted.

The third is ignoring the interfaces: how the guard meets a wall, a stair stringer, a door jamb, a change in level, or the next run of guard. Those junctions are where water gets in, where the sightline breaks, and where field-improvised details look improvised. They are worth drawing before fabrication.

The fourth is deferring the code and engineering questions. Guard height, loading, glass type, and whether a top rail is required are set by the adopted code edition, the occupancy, the project engineering, and the Authority Having Jurisdiction. We coordinate with the design team and the manufacturer on those items; we do not substitute for them.
