By Abricos Glass · Last updated 2026-08-10
Written and reviewed by the Abricos Glass team from field practice on Colorado projects. Cost ranges are budget guidance, not quotes, and code notes are background rather than a code determination — see our editorial and content accuracy policy.
Tempered vs Laminated Glass: Choosing by Application
A decision matrix for the one question that comes up on nearly every project: tempered or laminated? How each behaves when it breaks, where interlayers matter, what edge exposure does, and which applications rule one out.
The short answer: tempered glass is about strength and safe fragmentation; laminated glass is about retention after breakage. When a broken pane must stay in its opening — overhead, or where the glass itself is the guard — laminated is the family being asked for. When the priority is impact strength in a vertical opening that can be swapped out, tempered usually is.
They are not competing grades of the same product. Tempering is a heat treatment applied to a single lite. Lamination is an assembly: two or more lites bonded to an interlayer, and those lites can themselves be annealed, heat-strengthened, or fully tempered. Laminated tempered glass exists and is common, which is why 'tempered or laminated' is often really a question about interlayers and retention.
This guide is an application decision framework. It does not determine what your project requires — safety glazing locations, guard make-up, and overhead glazing are set by the adopted code edition, the project engineering, and the Authority Having Jurisdiction. Use it to understand the trade-offs before that conversation, then let the drawings and the AHJ settle it.

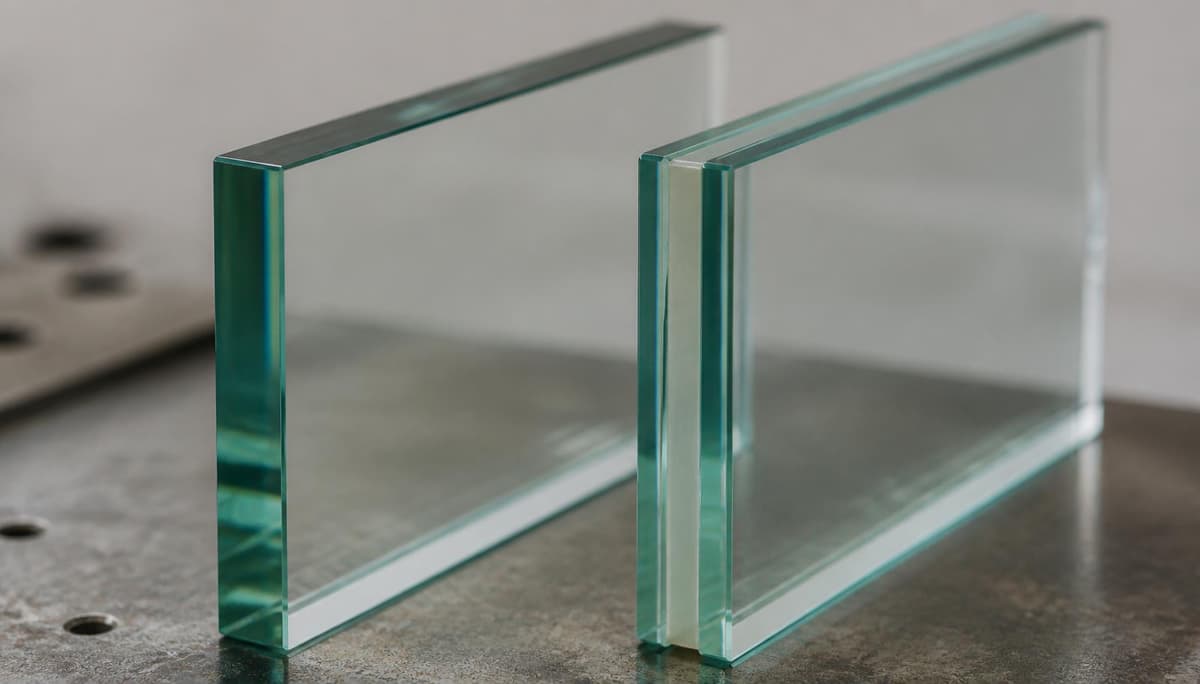

Tempered and laminated glass compared by behaviour and application
| Consideration | Fully tempered (monolithic) | Laminated (bonded interlayer) |
|---|---|---|
| Breakage behaviour | Fragments into small blunt granules and leaves the opening | Cracks but the fragments stay bonded to the interlayer |
| Post-breakage retention | None — the opening is empty | Retained, which is the whole point overhead and in glass guards |
| Typical strength role | Roughly four to five times annealed for impact and thermal stress | Depends on the lites used; strength comes from the glass, retention from the interlayer |
| Fabrication after treatment | None possible — every hole, notch, and edge is fabricated before tempering | Also fixed once laminated; interlayer trimming is a fabrication step, not a site one |
| Edge exposure | Polished exposed edges are normal | Exposed edges need protection or a suitable interlayer; water at an unsealed edge can cause delamination over time |
| Acoustic and UV behaviour | Same as annealed of the same thickness | Interlayer damps sound and blocks most UV |
| Cost position | Lower for the same thickness | Higher — two lites plus the interlayer, plus more fabrication |
| Typical failure mode to plan for | Rare spontaneous breakage from inclusions; the panel is replaced | Edge delamination if water sits at an unprotected edge |
Railings and glass guards
This is where the distinction is most consequential. When the top edge of the glass acts as the guard, there is nothing else holding the assembly if the panel breaks, so the make-up is normally a laminated build with a structural interlayer stiff enough to keep the broken panel standing. Where a continuous top rail is present that would retain a failed panel, a monolithic tempered make-up may be acceptable instead.
Which of those applies to your guard is an engineering and AHJ determination for the specific project, not a preference. What is useful to know up front is the cost and lead consequence: a laminated guard make-up is heavier, thicker, and more expensive than a tempered one, and it changes the base shoe or hardware sizing with it.
Interlayer choice matters here more than anywhere else. Ionoplast interlayers are considerably stiffer than standard PVB and hold a broken panel more upright, which is why they dominate structural guard applications. That stiffness is also why substituting one interlayer for another is an engineering change, not a swap.
Showers and bath enclosures
Shower glazing is safety-glazing territory and is normally fully tempered. Frameless enclosures use 3/8-inch or 1/2-inch tempered glass because the panel is carrying its own weight through a small number of hardware points, and because tempered fragmentation is the safe failure mode in a confined wet space.
Laminated glass is uncommon in showers for practical reasons: every edge is exposed to standing water and the enclosure is a high-moisture environment for the life of the assembly. Where a laminated or specialty make-up is genuinely wanted — a heavy decorative panel, a specific acoustic condition — the edge protection detail has to be designed rather than assumed.
The planning consequence is the same either way. Tempered glass cannot be cut, drilled, or notched after treatment, so hinge holes, handle holes, and notches are fabricated before the panel exists. That is why field measurement happens after tile and substrate are complete.
Storefront and commercial vertical glazing
Ground-floor storefront lites are typically tempered where safety glazing applies, which in practice covers most of what sits next to a door or within reach of a walking surface. Tempered is also the pragmatic choice for a lite that will eventually be replaced: it is the cheaper make-up and replacement is a straightforward swap.
Laminated shows up in storefront for reasons other than safety glazing: acoustic performance on a busy street, forced-entry delay, UV control for merchandise, or a security requirement written into the tenant's programme. In an insulating unit, one lite can be laminated and the other tempered — the make-up is specified per performance requirement rather than chosen as a family.
When you are matching a broken lite in an existing system, the make-up, coating, and unit build of the neighbouring glass matter as much as the dimension. A laminated lite replaced with a monolithic tempered one will look and perform differently even when it fits.
Overhead, sloped, and walkable glazing
Anything above people is the clearest case for laminated. The concern is not strength but what happens after breakage: a tempered panel overhead empties its fragments into the space below, while a laminated panel generally stays in the frame. Skylights, canopies, glass floors, and treads are specified with retention as the governing requirement, frequently as laminated heat-treated builds with additional requirements from the engineer of record.
Sloped glazing also brings thermal and load conditions that vertical glazing does not — snow load, thermal stress from partial shading, and long-term interlayer creep at temperature. These are engineering inputs, and overhead glazing is one of the applications where the specification should be settled with the design team and the AHJ before anything is priced.
Edge exposure, fabrication, and buying decisions
Exposed edges are the practical dividing line in day-to-day work. A tempered panel with polished exposed edges is normal and durable. A laminated panel with exposed edges needs either a suitable interlayer for that exposure or a detail that keeps water off the edge; otherwise moisture migration at the interlayer shows up years later as a milky margin, and that is not repairable — the panel is replaced.
Both families share one absolute constraint: fabrication is finished before the glass is treated or bonded. Nothing is trimmed, drilled, or notched on site. Every dimension therefore depends on a field measurement of the finished condition, and every change after release is a new panel.
For buyers, the useful summary is: ask what happens if this panel breaks. If the answer is 'it must stay in place', you are in laminated territory. If the answer is 'it is replaced', tempered is usually the efficient specification — subject to what the code and the engineering for your project require.
Frequently asked questions
- Is laminated glass stronger than tempered glass?
- Not inherently. Strength comes from the glass lites and their thickness and heat treatment; the interlayer provides retention after breakage. A laminated unit made from annealed lites can be weaker in impact than a single fully tempered lite while still holding together when it breaks.
- Can glass be both tempered and laminated?
- Yes, and it is common in structural applications. Laminated builds frequently use two fully tempered or heat-strengthened lites bonded to an interlayer, combining impact strength with post-breakage retention.
- Which one does my glass railing need?
- That is determined by the project engineering and the Authority Having Jurisdiction, and it depends heavily on whether a continuous top rail is present to retain a failed panel. The general pattern is that guards where the glass edge acts as the handrail use a laminated make-up.
- Why is laminated glass more expensive?
- It is two or more lites plus an interlayer, laminated in an additional process, and it is heavier — which affects hardware sizing, handling, and setting labour as well as the glass line item.
- Can either type be cut or drilled on site?
- No. Tempered glass will break if cut or drilled after treatment, and laminated assemblies are fabricated to size before bonding. All holes, notches, and edge work happen at the fabricator, which is why field measurement precedes fabrication.
Planning a glass project?
We measure, coordinate fabrication, and install across the Denver metro and the Front Range. Send us your dimensions or photos and we'll come back with a clear, itemized quote.
Request a quote →
