What Frameless Glass Actually Is
A System, Not Just a Pane of Glass
A frameless installation uses tempered glass panels held by discrete hardware — hinges, patch fittings, tracks, standoffs, or base shoe — instead of a continuous metal frame around every edge. The finished appearance depends as much on the substrate, hardware, and sealant work as on the glass itself.
Because tempered glass cannot be trimmed after processing, the sequence of design, field measurement, templating, and fabrication has to match the actual project conditions. Openings that are close to plumb, level, and square typically produce tighter joints and cleaner reveals.
This page explains where frameless systems are used, how the common system families differ, which glass and hardware options are available, and what to expect during a typical project. It is intended as reference material for owners, designers, and contractors evaluating the approach.
Common Applications
Frameless Interior Partitions
Office fronts, conference rooms, reception areas, and residential partitions using butt-jointed or dry-glazed panels. Deflection heads accommodate movement above the glass.
All-Glass Entrance Doors
Patch-fitting or top-rail entrances at retail, hospitality, and office fronts. Door weight, closer selection, and floor conditions must be reviewed before ordering.
Frameless Sliding Systems
Top-hung or bottom-rolling sliding walls for patios, offices, and residential openings. Track selection depends on panel size, weight, opening width, and structural support.
Frameless Glass Railings
Interior stairs, balconies, and mezzanines using base shoe, standoff, or point-fixed systems. Handrail requirements, glass thickness, and code compliance are project-specific.

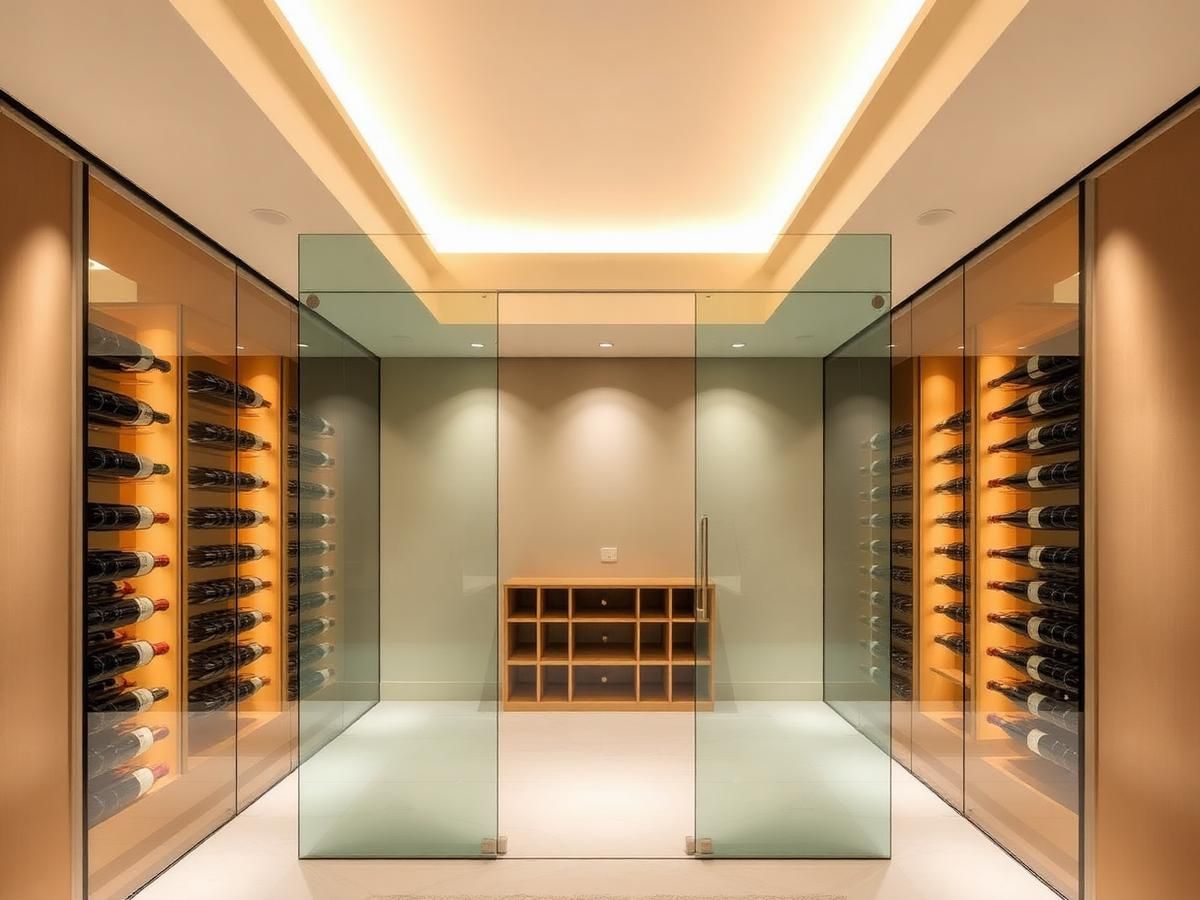

Wine Rooms and Display Enclosures
Temperature-separating glass walls typically use insulated units with warm-edge spacers to reduce condensation. Door seals, humidity control, and cooling coordination must be planned.
Steam Shower Enclosures
Steam-tight enclosures require ceilings, gaskets at door meeting points, and manageable vent panels. The steam generator and controls are installed by other trades.
Frameless Skylights and Overhead Glazing
Sloped and horizontal glass applications may use laminated glass over tempered glass for fragment retention. Structural support and drainage should be engineered separately.
Frameless System Types
The right system depends on the opening, structural support, appearance goals, and how the assembly is used every day. The families below cover the majority of residential and commercial applications.
Butt-Glazed Panels
Panels joined edge-to-edge with clear silicone. Provides a nearly seamless appearance. Requires straight, plumb substrates and careful sealant tooling.
Dry-Glazed Systems
Vertical joints use dry gaskets instead of silicone. Slightly less transparent but faster to install and easier to service.
Top-Hung Sliding
Doors ride on an overhead track. Structural blocking or a steel header is typically required to carry panel weight.
Bottom-Rolling Sliding
Doors ride on a floor track with an upper guide. Suited to openings where overhead structure cannot support panel loads.
Patch Fittings and Rails
Small metal fittings clamp all-glass doors and sidelites. Common at retail entrances and interior all-glass doors.
Point-Fixed (Spider) Systems
Stainless fittings anchor the glass to structure at discrete points. Used for large-format facades, canopies, and feature walls.
Base Shoe Railings
Aluminum extrusion secures glass at the floor line. Handrail requirements depend on jurisdiction and glass type.
Standoff Railings
Round or rectangular standoffs anchor glass to the structure or fascia. Well-suited to mezzanines and modern residential stairs.
Frameless vs. Semi-Frameless vs. Framed
All three approaches have valid uses. The comparison below covers common differences, not project-specific requirements.
| Feature | Frameless | Semi-Frameless | Framed |
|---|---|---|---|
| Visual profile | Minimal to none | Thin metal edges | Continuous metal frame |
| Typical glass thickness | 3/8" or 1/2" tempered | 3/16" or 1/4" tempered | 3/16" tempered |
| Substrate tolerance | Requires plumb, level substrates | Moderate tolerance | Higher tolerance |
| Water management | Depends on layout, sweeps, and slope | Frame channels help direct water | Frame channels direct water |
| Fabrication lead time | Typically longer; custom-tempered | Moderate | Often shortest |
| Typical use | Custom showers, partitions, entrances | Cost-conscious upgrades | Budget-focused or high-tolerance openings |
Glass Options for Frameless Systems
Glass selection affects safety, clarity, sound, thermal performance, and appearance. Final specifications depend on the complete assembly and applicable code requirements.
Tempered
Heat-treated safety glass required at doors, sidelites, low-level hazardous locations, and most frameless applications. Cannot be cut or drilled after tempering.
Laminated
Two or more layers bonded with an interlayer. Improves fragment retention and sound control. Often required for guardrails and overhead glazing.
Tempered Laminated
Combines safety-glass strength with fragment retention. Frequently specified for structural railings and skylights.
Low-Iron
Reduced iron content produces higher clarity and more accurate color. Recommended when the natural green tint of standard glass would be noticeable.
Insulated Glass Units
Sealed dual- or triple-pane assemblies used where thermal or acoustic separation is required, such as wine rooms and exterior partitions.
Acid-Etched or Sandblasted
Provides visual privacy while transmitting daylight. Fingerprint visibility and cleaning method should be reviewed before selection.
Patterned or Textured
Reeded, fluted, and cast patterns can add character to partitions and shower enclosures without fully obscuring light.
Switchable (PDLC)
Electrically switchable film sandwiched between glass layers changes from clear to translucent on demand. Requires low-voltage wiring by qualified trades.
Hardware Families
Hardware determines how a frameless assembly opens, closes, seals, and holds up to daily use. Component sets should be matched to panel weight, swing direction, and finish.
- ▸Self-centering hinges
- ▸Pivot hinges
- ▸Continuous piano hinges
- ▸Top-hung roller assemblies
- ▸Bottom-rolling wheels
- ▸Header tracks
- ▸Floor guides
- ▸Patch fittings
- ▸Top and bottom rails
- ▸Handles and knobs
- ▸Push/pull bars
- ▸Barn-door pulls
- ▸Magnetic latches
- ▸Header seals
- ▸Bottom door sweeps
- ▸Side jamb wipes
- ▸Steam-shower gaskets
- ▸Base shoe extrusions
- ▸Standoffs
- ▸Point fittings (spiders)
- ▸Cap rails and handrails
Available finishes and models vary by manufacturer and configuration. Confirm availability early in design so alternates can be considered when needed.
Installation Process
- 01
Design Review
We review drawings, elevations, opening dimensions, adjacent finishes, and the intended system before pricing. Photographs are helpful for existing conditions.
- 02
Proposal and Clarifications
A written proposal identifies the included scope, glass type and thickness, hardware finish, assumptions, exclusions, and site requirements.
- 03
Field Verification
Openings are checked for plumb, level, square, and structural backing. Deviations that affect the design are identified before templating.
- 04
Templating
Physical templates or laser measurements capture final dimensions after tile, drywall, and adjacent construction are complete.
- 05
Fabrication Coordination
Tempered glass cannot be modified after processing, so all holes, notches, and edgework are confirmed before release. Lead times depend on the fabricator and product.
- 06
Delivery Planning
Access routes, elevator dimensions, weight, and staging areas are reviewed. Oversized panels may require alternate access.
- 07
Installation
Panels are set, aligned, sealed where required, and adjusted for operation. Silicone-cured joints typically need a defined cure period before use.
- 08
Punch List and Cleanup
Alignment, hardware operation, and finishes are reviewed. Protective film is removed and the enclosure is cleaned before turnover.
Common Mistakes to Avoid
Most frameless problems trace back to a handful of planning and coordination issues. The list below covers the ones we encounter most often on residential and commercial projects.
Ordering glass before conditions are final
Tempered glass cannot be trimmed. Framing changes, tile thickness variations, or curb reshaping after templating typically require re-fabrication.
Underestimating structural support
Top-hung sliding systems and heavy pivot doors transfer significant load. Wood blocking or steel plates should be coordinated during rough framing.
Ignoring wall plumb
Butt-joined panels magnify out-of-plumb walls. Shimming, filler strips, or an alternative system may be required if substrates are not corrected.
Skipping deflection allowances
Interior partitions installed to a floor above must accommodate structural movement. A rigid connection can crack glass or damage the ceiling.
Choosing hardware for appearance only
Handles, hinges, and seals should match panel weight, swing direction, and daily use. Undersized hardware sags, binds, or fails prematurely.
Forgetting drainage in showers
Glass alone does not create a waterproof enclosure. Sloped curbs, thresholds, and door sweeps must direct water back toward the drain.
Assuming coatings prevent all spotting
Protective coatings reduce mineral buildup but do not eliminate cleaning. Squeegeeing after use extends clarity between deep cleans.
Overlooking access to the site
Large panels may exceed elevator or corridor dimensions. Alternate access should be verified before fabrication.
Maintenance and Longevity
Frameless glass and hardware last longest when maintained on a routine schedule. The following practices apply to most residential and commercial installations.
- Squeegee shower glass after each use to reduce mineral spotting
- Clean with pH-neutral glass cleaner; avoid abrasive pads and ammonia-based products on treated glass
- Inspect and re-lubricate rollers and hinges according to the hardware manufacturer's schedule
- Check silicone joints periodically for cracking, discoloration, or separation
- Confirm door sweeps and seals still contact the adjacent surface
- Verify magnetic latches and closers still engage fully
- Address chips or edge damage promptly to reduce the risk of spontaneous breakage
- For steam enclosures, confirm ceiling seals and vents remain intact
Frameless Glass Across the Denver Metro Area
Abricos Glass serves Denver and surrounding Colorado communities. Availability depends on project size, site conditions, scope, and schedule.
- Denver
- Littleton
- Englewood
- Lakewood
- Aurora
- Centennial
- Highlands Ranch
- Greenwood Village
- Lone Tree
- Arvada
- Westminster
- Wheat Ridge
- Golden
- Parker
- Castle Rock
- Broomfield
Frequently Asked Questions
Frameless Glass FAQs
What does frameless glass mean?
A frameless system uses tempered glass panels held by discrete hardware — hinges, patch fittings, standoffs, base shoe, or overhead tracks — instead of a continuous metal frame around every edge. Silicone or gaskets may seal joints where required.
How thick is frameless glass?
Most frameless applications use 3/8" or 1/2" tempered glass. The specific thickness depends on panel size, hardware, code requirements, and load conditions.
Is frameless glass safe?
Frameless installations typically use tempered safety glass, which is heat-treated to be significantly stronger than annealed glass and to break into small, granular pieces. Where fragment retention or overhead glazing is a factor, tempered laminated glass may be specified.
How long does a frameless shower take to install?
Timelines depend on templating and fabrication. After the opening is ready for templating, custom-tempered glass typically takes several weeks to fabricate. Installation itself is often completed in a single visit for most residential enclosures.
Can frameless glass be cut on site?
No. Tempered glass cannot be cut, drilled, or notched after tempering. All fabrication is completed before delivery, which is why accurate templating is essential.
Do frameless showers leak?
Frameless enclosures rely on properly sloped thresholds, door sweeps, and correctly located drains to manage water. A splash of water at the door line is normal; ongoing leaks usually indicate a slope or waterproofing issue rather than a glass issue.
What is the difference between frameless and semi-frameless?
Semi-frameless systems use thin metal edges on some sides, typically around the door or top rail, and use thinner glass. Frameless systems use thicker glass held only by hardware. Both are valid choices with different cost, tolerance, and appearance trade-offs.
Do I need special hardware for heavy glass doors?
Yes. Hinges, pivots, and closers are rated for specific panel weights and dimensions. Undersized hardware may sag, bind, or fail prematurely.
Can frameless partitions be installed in a rental or existing office?
In many cases, yes. Deflection heads accommodate ceiling movement, and dry-glazed systems are typically easier to remove or reconfigure than fully sealed butt-joined walls.
Does frameless glass require structural coordination?
For sliding systems, heavy pivot doors, and railings, backing or structural support should be coordinated during framing. Retrofits may require analysis of the existing structure before installation.
What finishes are available for hardware?
Common finishes include polished chrome, brushed nickel, matte black, brushed brass, and stainless steel. Not every finish is offered by every manufacturer or in every configuration, so availability should be confirmed early.
Do glass coatings prevent water spots?
Protective coatings reduce mineral bonding to the surface, which makes cleaning easier. They do not eliminate the need for maintenance. Squeegeeing after use extends clarity between cleans.
Can frameless doors swing both directions?
Some pivot and self-centering hinge sets allow inward and outward swing. Others are single-direction. The chosen hardware determines the possible swing.
How is frameless glass cleaned?
A pH-neutral glass cleaner and a soft cloth or squeegee are typically recommended. Abrasive pads, ammonia-based products, and acidic cleaners can damage coatings, hardware finishes, and sealants.
What is a deflection head?
A metal channel at the top of an interior partition that allows the structure above to move without transferring load to the glass. It is standard on many commercial frameless partitions.
Do frameless walls provide sound control?
A single tempered pane offers limited acoustic performance. Laminated glass and full-height sealed perimeters improve sound control. Confirmed acoustic ratings depend on the tested assembly, not the glass alone.
Are frameless railings code-compliant?
Guardrails must meet applicable structural and safety-glazing requirements for the jurisdiction. Glass type, thickness, mounting, and handrail requirements are all evaluated on a project-specific basis.
Can I add a transom above a shower door?
Fixed transoms above shower doors are common. They may improve ventilation and provide a finished appearance under tall ceilings. Structural support and integration with the door hardware should be reviewed.
What areas do you serve?
Abricos Glass serves Denver and surrounding Colorado communities. Projects outside the immediate metro area may also be considered, depending on scope, access, and schedule.
How do I request a quote?
Use the form on this page, email support@abricosglass.com, or call (720) 772-8327. Include photographs, approximate dimensions, and the project address for the fastest review.
Hardware & Systems
Behind the glass.
A closer look at the frames, tracks, and sealing systems engineered into every frameless installation.
Live demonstration
Frameless sliding glass in operation
System in motion
Slide accessories & locking hardware

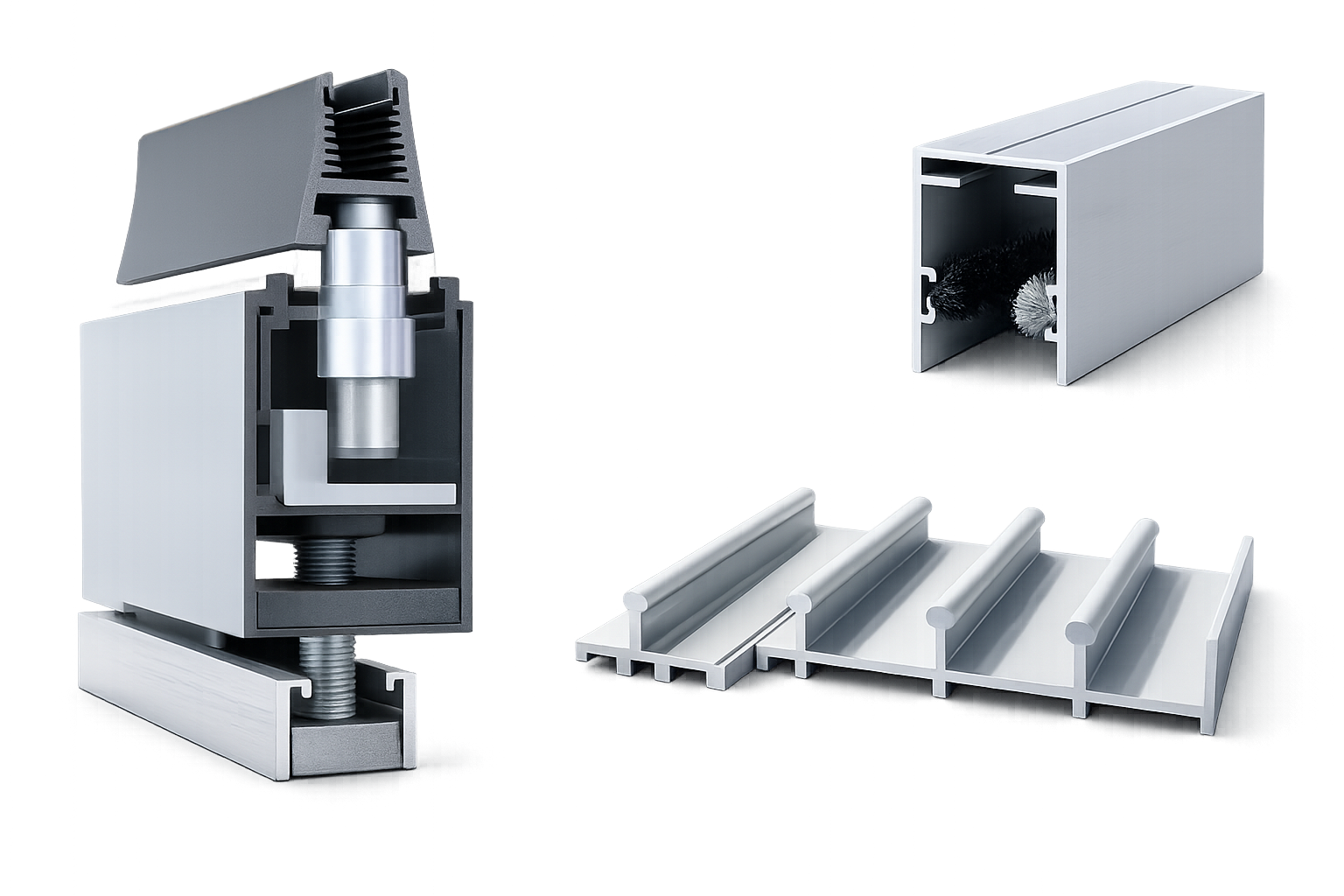

Roller mechanism & track profile detail
Precision Hardware

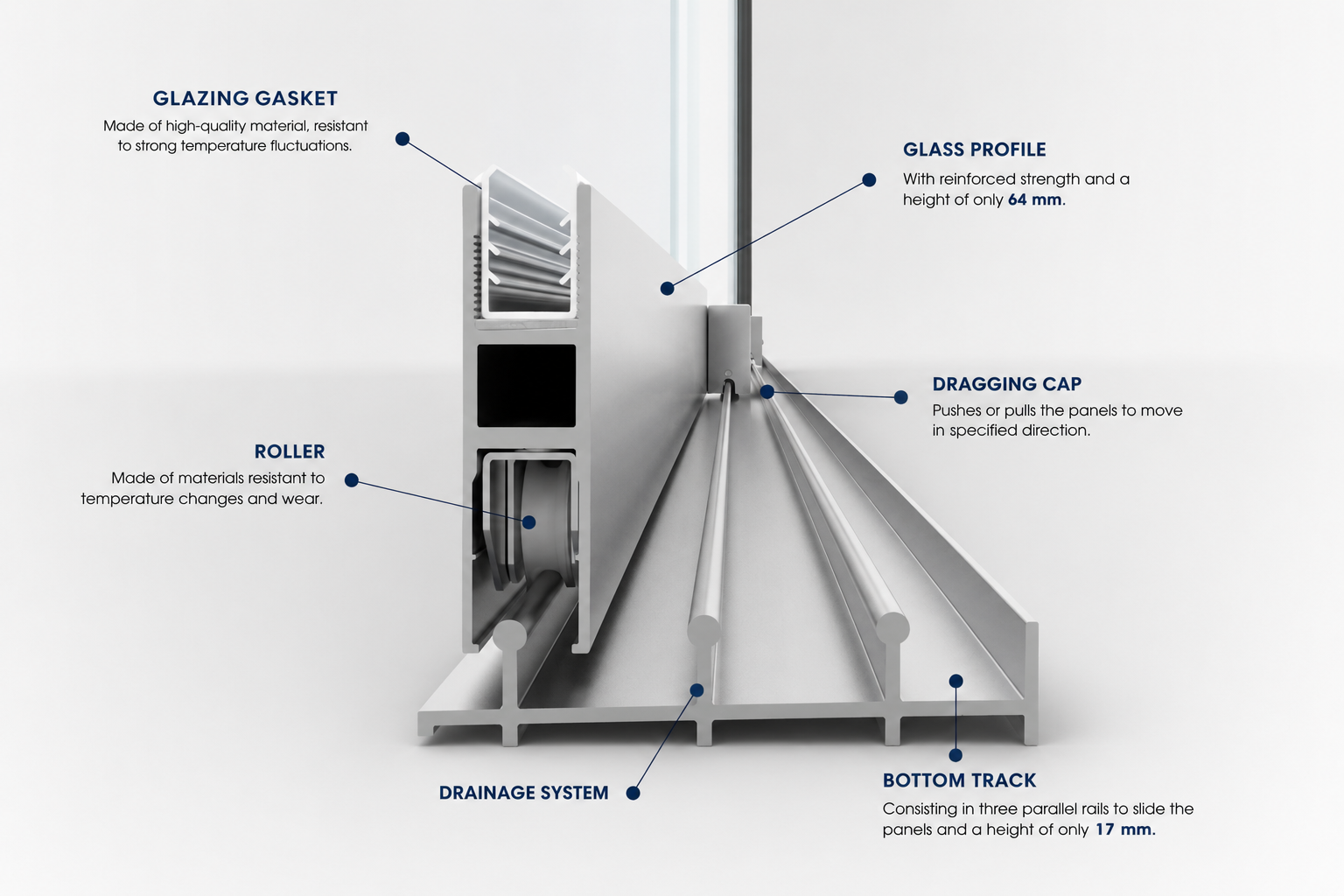

64 mm glass profile · 17 mm bottom track
Slim Profile System

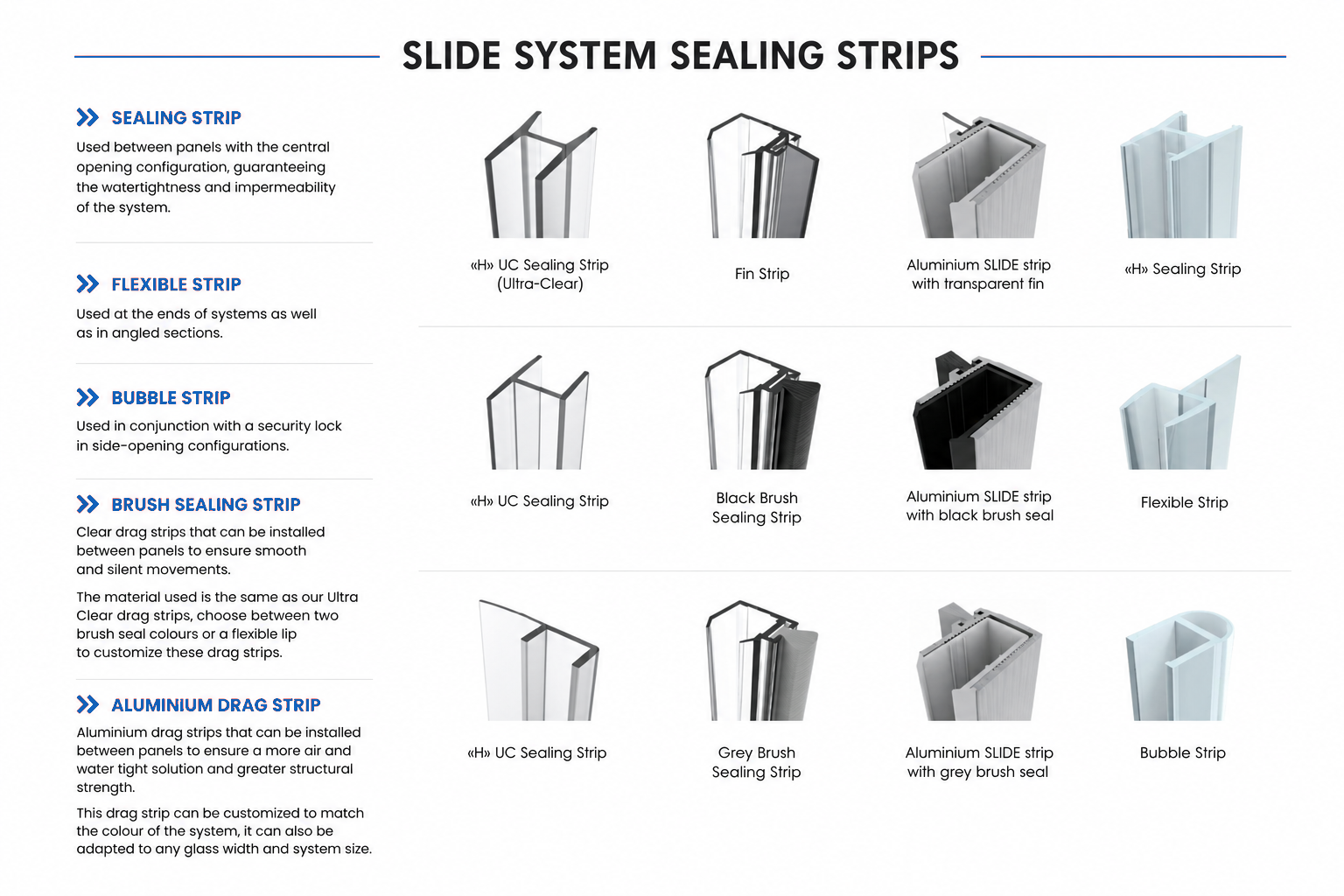

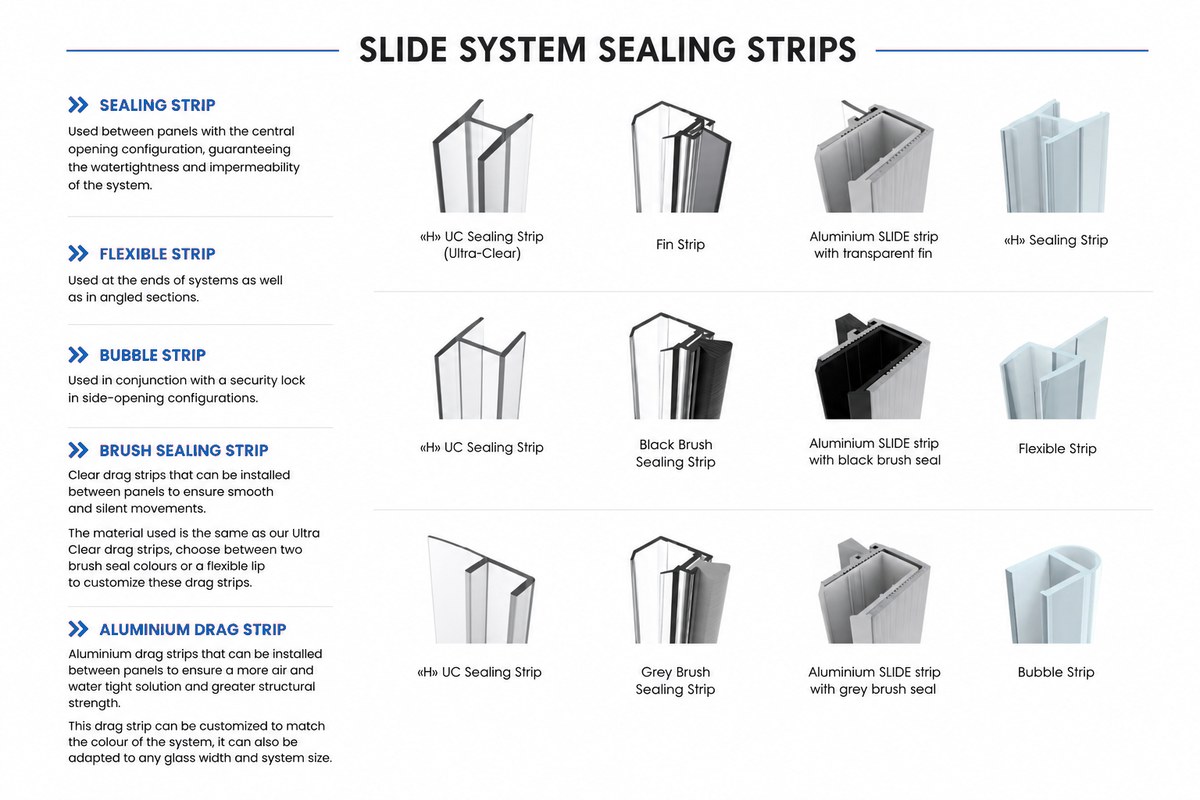

Watertight configurations & drag strips
Sealing Strip Options

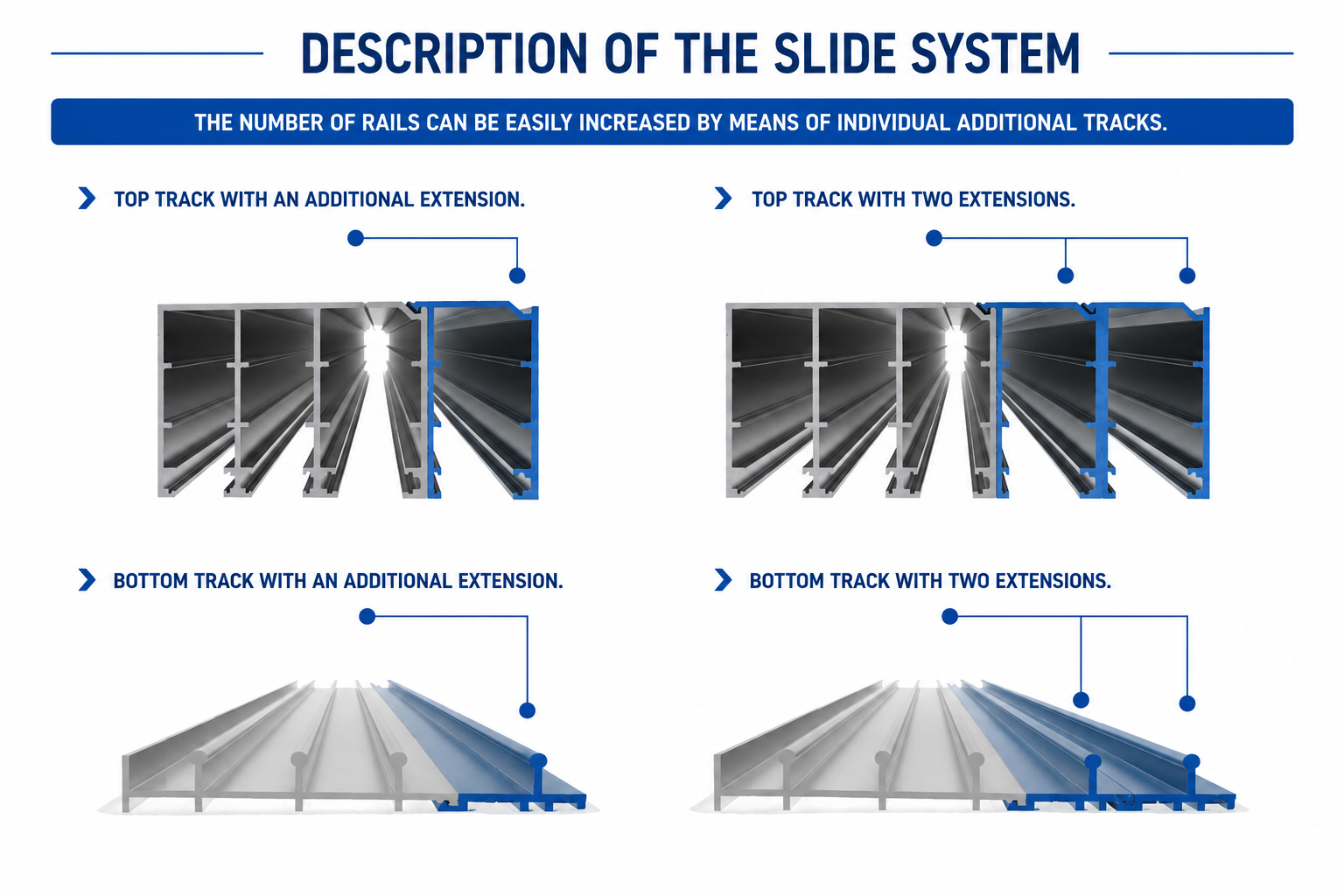

Configurable rail count for any opening
Track Extensions

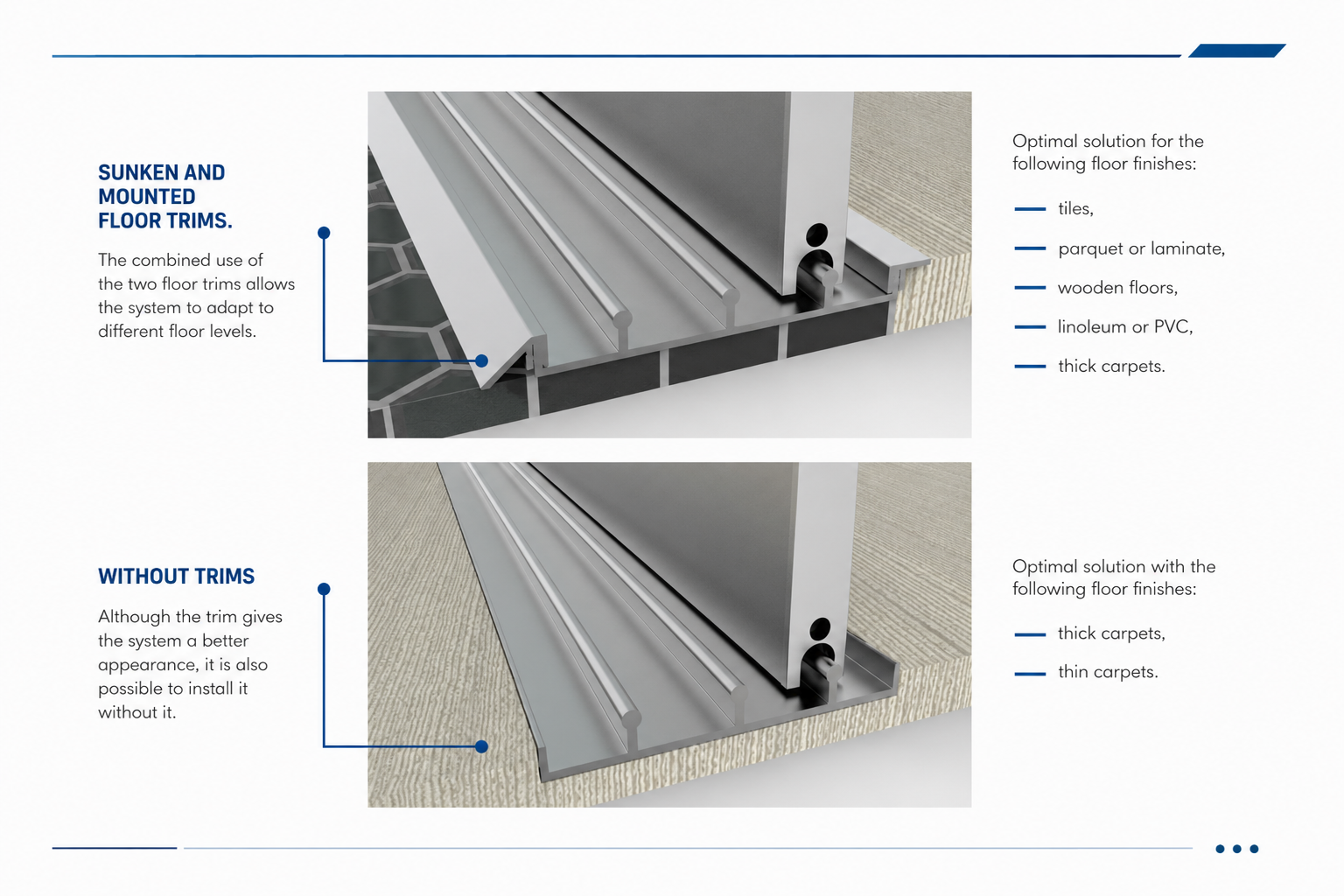

Adapts to tile, wood, laminate, and carpet
Sunken & Mounted Floor Trims

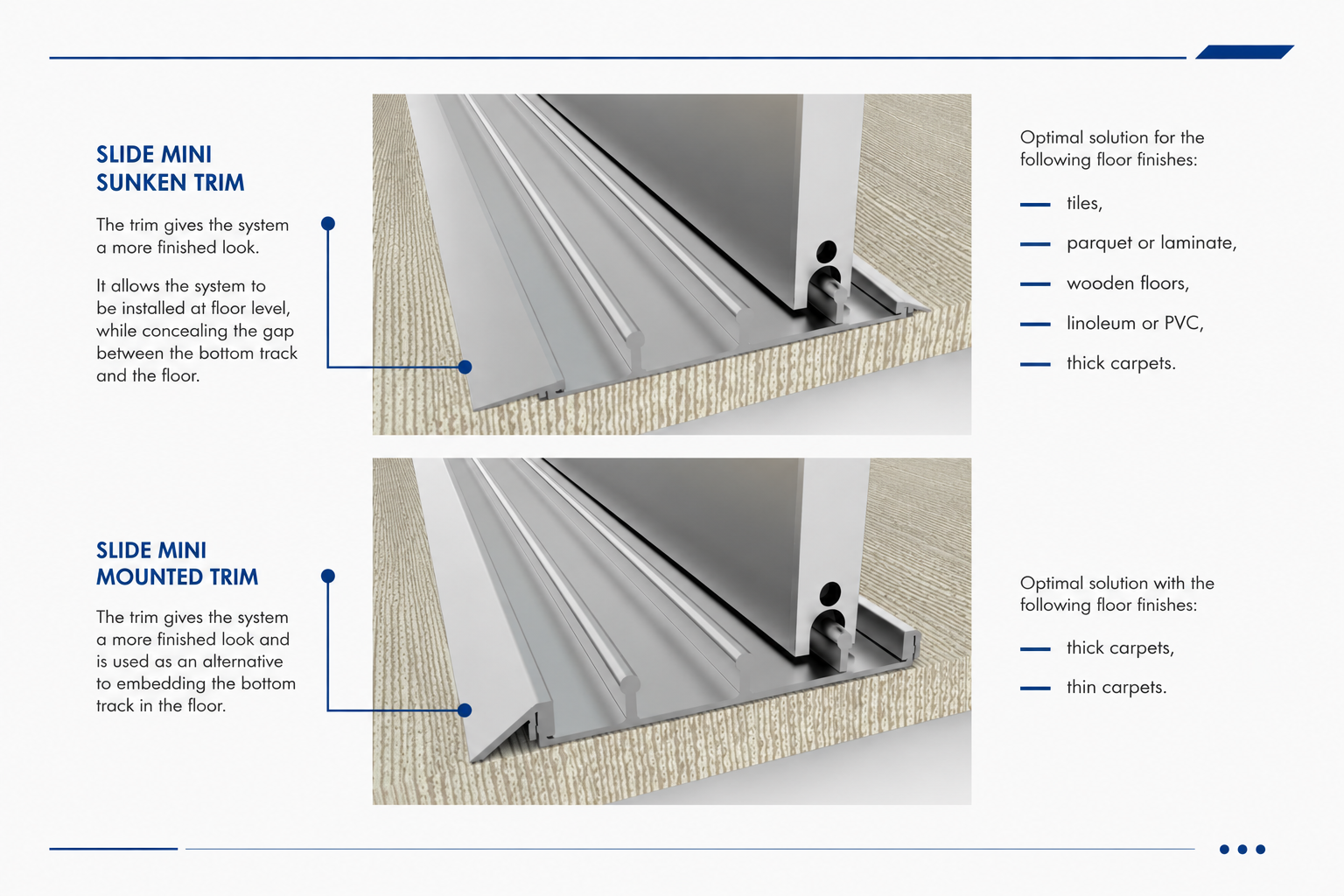

Finished look for floor-level installations
Slide Mini Trims

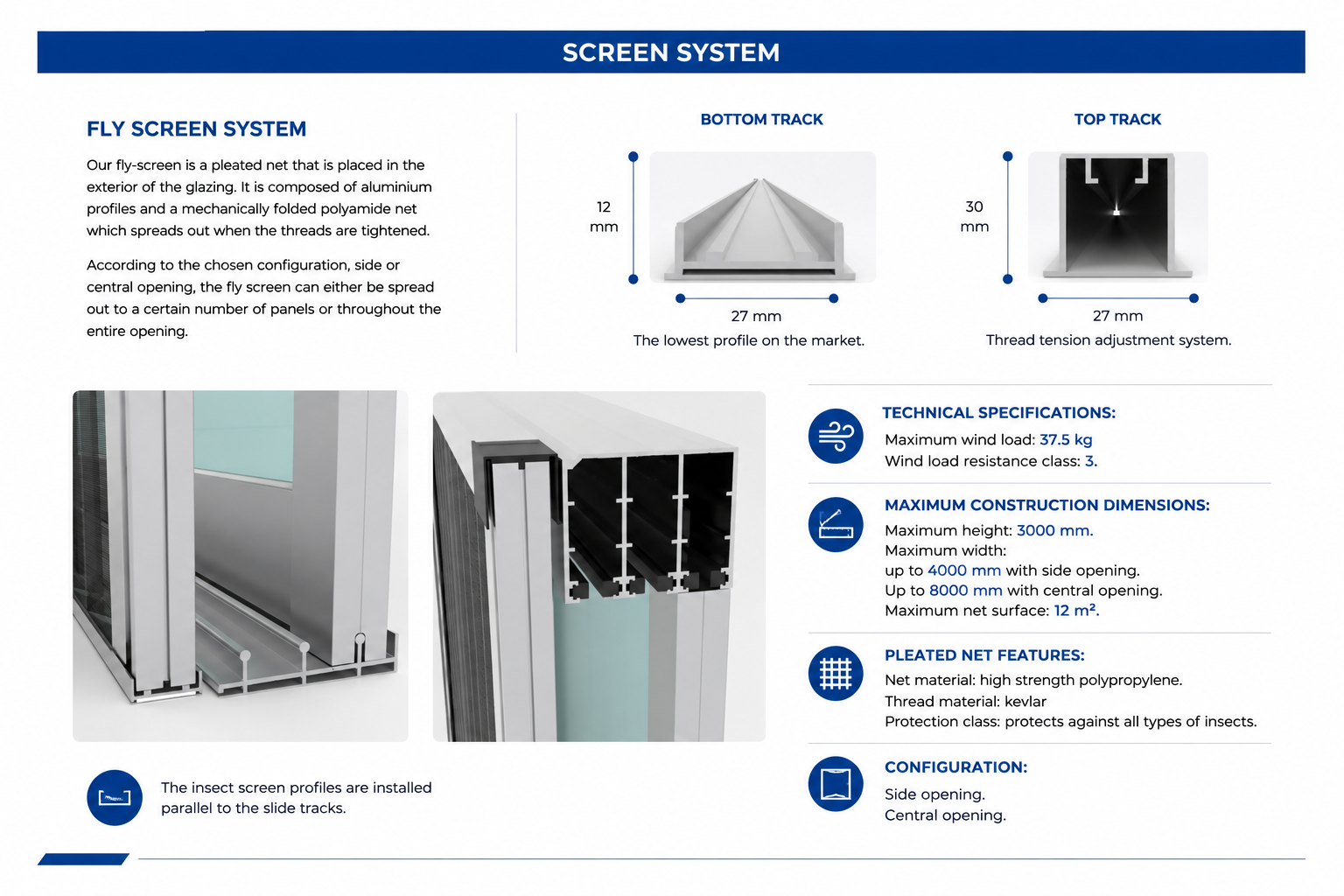

Pleated polyamide net with kevlar tension
Fly Screen System
